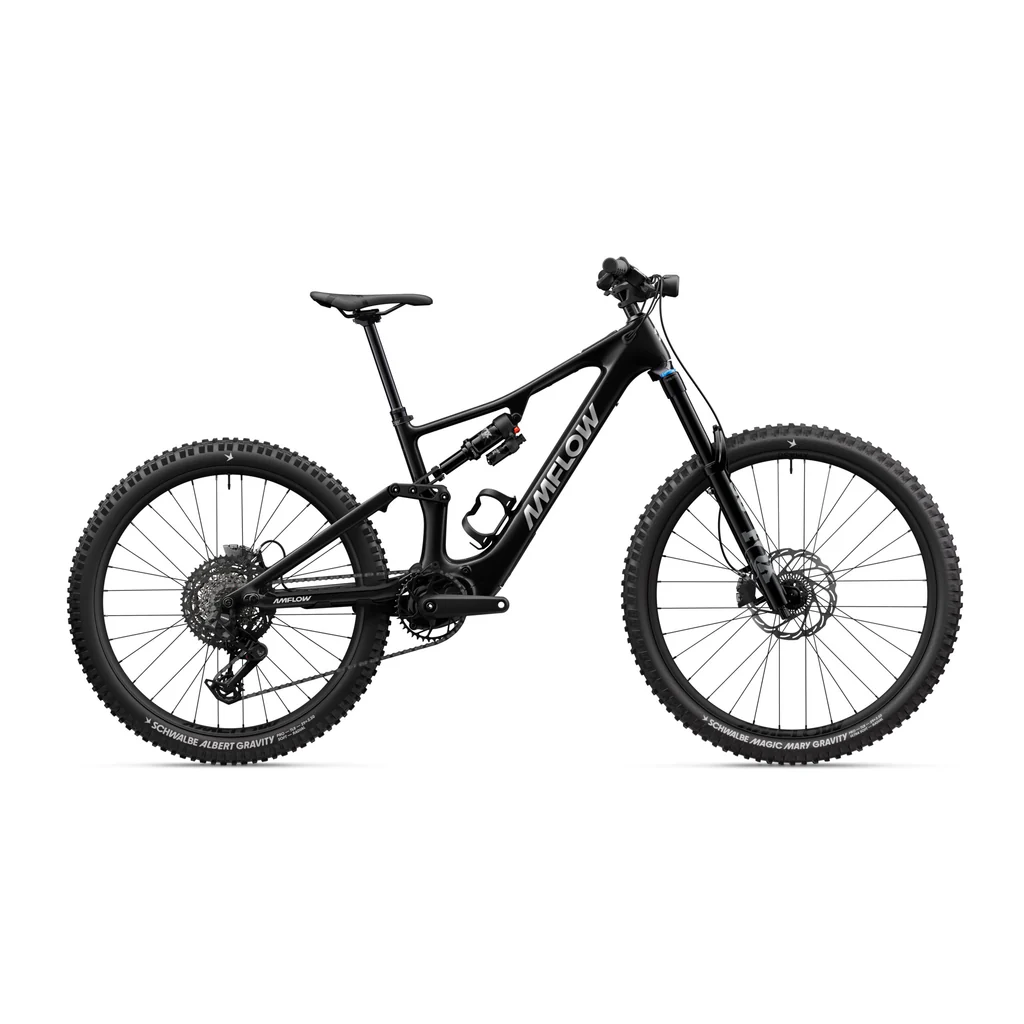

Amflow PX Carbon E-Bike (gen2)

Amflow PX Carbon

Frame
Amflow PX Carbon Frame

Phantom Black

40 adjustable geometry configurations *

Compatible with 27.5″ and 29″ rear wheels

E-Bike System
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Integrated Battery: 700Wh

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W

Rear shock
FOX Float X Performance (MY 2027)

2-position lever, custom tune, LSR adjustment, 210×55mm, air shock

Fork
FOX 36 Performance (MY 2027)

160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset

Drivetrain
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur

Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox

Shift Levers: SRAM AXS Pod Rocker Controller

Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T

Chain: SRAM Eagle 70 Transmission Flattop Chain

Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)

Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers

Magura Sensor Rotor (203mm, 2.5mm)

Wheels
Amflow XMA-30 Mullet Version

Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready

Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready

Spokes: SAPIM E-Light

Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt

Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG

Tires
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready

Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready

Handlebar
Amflow Enduro Carbon Handlebar

40mm Rise, 800mm Width, 35mm Diameter

5-degree upsweep, 9-degree backsweep

Grips
Amflow Enduro Grip 2 Lock-on Grips
Stem
Amflow Mountain Bike Split Stem

Length: 35mm

Clamping Diameter: 35mm

Saddle
Amflow Mountain Saddle Titanium
Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)

M/L Frame: 190mm

XL Frame: 210mm

XXL Frame: 230mm
