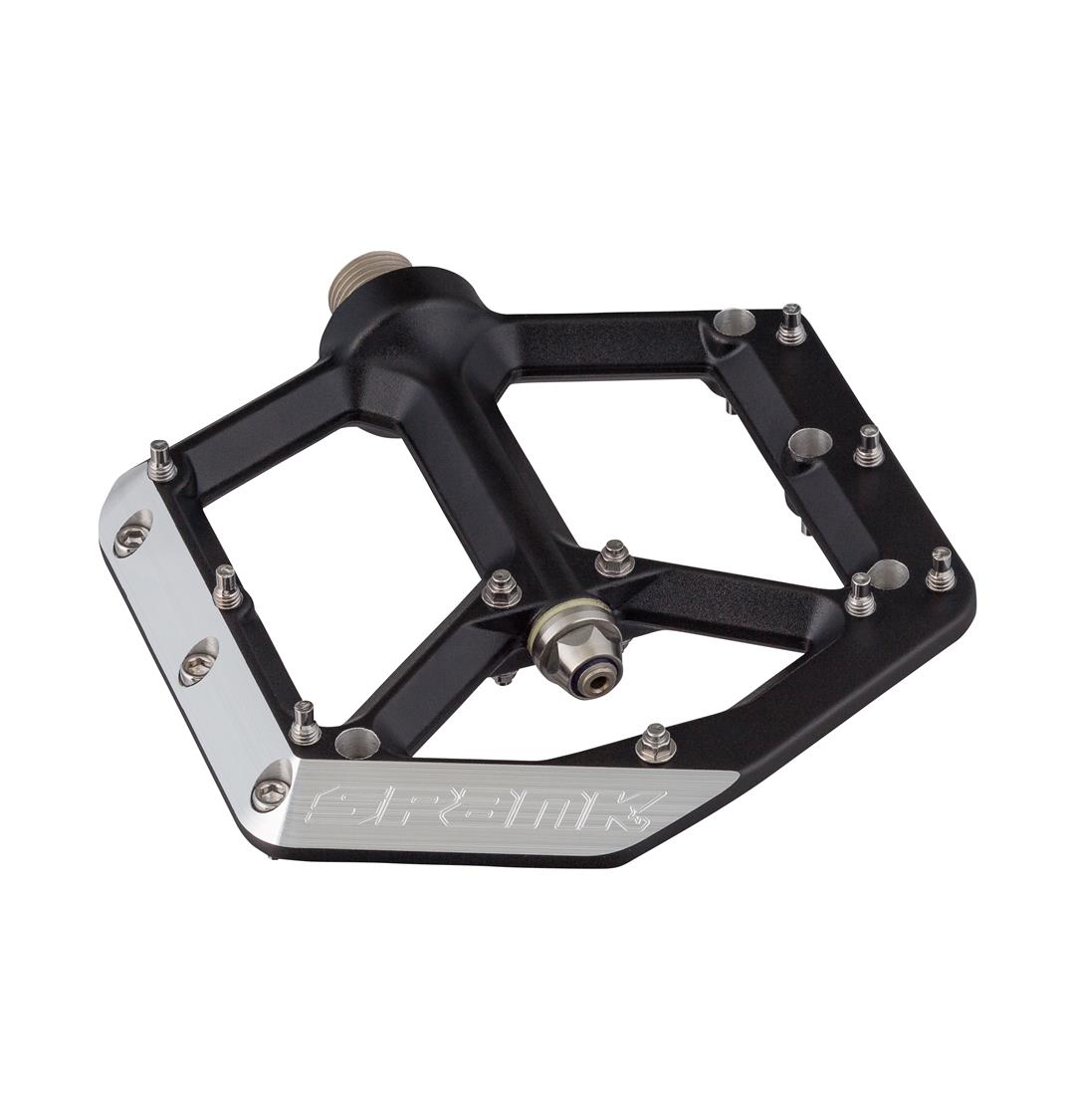

Spank Spike Pedal Black

SPANK – SPIKE



The Spike Flat Pedal achieves an ultra-thin 12mm thickness without compromising a closed axle design or ultimate strength.

By utilizing a cold forged pedal body and special scandium enriched, hollow taper steel axle, paired with a thin walled IGUS outboard bushing. The results are improved pedaling and cornering clearance, lowered center of gravity, reduced “pedal flip” effect, and improved pedalling efficiency as the rider’s foot is brought closer to the center axis of the pedal.

Chamfered leading and side edges also improve the pedals ability to glance over obstacles and reduce impact forces.

Oversized, full compliment, industrial sealed inboard bearings slam flush with crankarms to reduce leverage on the bearing unit while at the same time reducing Q-factor, which further improves pedalling efficiency and rider positioning.

Finally the extra long 90+cm2 platform improves grip and support, while further reducing the “pedal flip” effect during climbing or aggressive pedalling. The Spike Flat is truly a revolution in pedal design!” – Gavin Vos (Designer | Spank Co-founder)



12mm Thin – Massive Platform

400g per pair

Cold Forged Alloy Pedal Body

Hollow Taper Scandium Enriched Steel Axle

Chamfered Leading Edges for Improved Clearance and Reduced Impact Forces

Chamfered Side Edges for Improved Cornering Clearance

Oversized Sealed Full Compliment Inboard Industrial Bearing

Sealed Outboard IGUS Bushing

20 Adjustable Pins per Pedal

Full Sized Hex Head Pins Improve Durability and Maintenence

Inboard Friction Seal Prevents Contamination and Reduces Unwanted Pedal Spin

Color: Zesty Orange / Ti-Grey / Black / Race Blue / Race Red

True Flat Platform – Concave Pin Pattern – Ultimate Grip and Adjustability!
